PRODUCTS
|
Truck Scale Equipment
& Accessories in the Central Carolina Scale Electronic Catalog
When you need accurate
truck weights and unsurpassed durability, it only makes sense to come
to Central Carolina Scale, Inc. CCS has been selling, installing and
working on truckscales for over 25 years.
Truck scales are available
in either full-electronic or electromechanical types with either concrete
or steel platforms. Low profile units offer simple installation with
minimal foundation requirements while pit type installations are often
the best choice for use in severe climates or when grain is to be
discharged out of the truck onto a conveyor mounted beneath the scale
platform. Multiple platform units are used to simultaneously measure
the truck's axle weights while obtaining its total weight as well.
Truck scales may be equipped
with many different options to increase their utility for both operator
and driver. Options include traffic lights,
truck management software, ticket
printers with tickets, remote
displays, guard rails and so on.
|
|
Traffic
Signals Lights
Rice Lake
traffic signals have been tested to over 80 mph wind loading
on a single-point attachment. Corrosion-resistant PVC coatings
and stainless steel hardware make the unit virtually impervious
to weathering.
Traffic
Light Kit, 8", 60W, mounting hardware to mount to 4"
pipe. Optional Aluminum pole with base available
|
|
|
SURVIVOR®
LaserLight™ Series
Remote Displays
Featuring
a super-bright LED display and a non-glare filtered lens, the
LaserLight remote display is clearly visible—even in direct
sunlight. The unique IntelliBright™ feature uses a photo
sensor to read ambient light to automatically adjust the LaserLight’s
display intensity between day and night settings. IntelliBright
prevents random switching of the display brightness from headlights
or lightning through a time and light intensity comparison.
The
LaserLight is available in 4" and 6" digit sizes and
features annunciators for gross, net, lb, and kg.
The
LaserLight’s configuration menu is entered via setup and
navigation switches and is displayed on the front panel for
easy configuration of the unit. Standard RS-232, 20 mA and RS-485
communications allow interfacing to digital indicators, host
computers and peripherals.
|
|
|

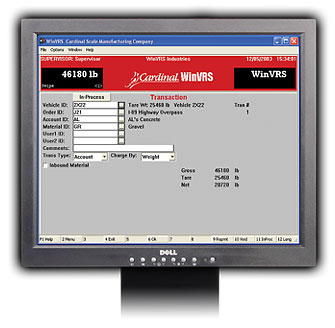

WinVRS
Vehicle Tracking System
Optimized
for Windows 2000 and XP®, Cardinal's powerful WinVRS software
keeps traffic moving over your scale by providing fast, accurate
collection of data on vehicles, accounts, orders, and materials.
Unique, user-defined fields allow you to easily configure
the system to meet your needs. A wide range of reports are
available to provide period histories, material totals, customer
information and more. WinVRS's convenient file utilities menu
allows data to be exported to other applications such as accounting
and materials control.
Cardinal also specializes in aftermarket support. All WinVRS
systems include a full year's support from Cardinal's technical
support group, who can connect directly to your system for system
diagnostics and application analysis from your location.
|
|
|
Cardinal
P400 - Ticket Printer
The
P400 Ticket Printer is a multifunctional printer capable of
printing a variety of tickets. This printer prints on the original
and up to 4 copies. Tickets can easily be inserted and removed.
Front panel controls permit tickets to be advanced, reversed,
or released. Its long-life print mechanism and easy-to-change
ink cartridge permit frequent use with no sacrifice in speed
or quality of printout.
|
|
|
Mechanical
Scale Tickets
Fairbanks
-- Howe -- Toledo -- Rice Lake
Or
create your own scale ticket -- please specify number of carbon
copies, dimensions, colors and text. Minimum order quantity
may apply.
Rice Lake
Carbonless 4.3 x 7"
Also Available:
Basic Electronic
Scale Ticket P/N: 20265
SP2200,
SP2000, RL250 & EL500:
• Carbon triplicate interleaved perforated
and glued on one end
• Size: 5.5" x 9" (139.7 x 228.6 mm)
|
|
Replacement
Printheads for Printers
Document
Printers
Okidata
22700 .......... 320/321
Star (Consult
factory)
Label Printers
Datamax
42673 .......... Ovation! 2/WinOvation!
20846 ..........
Allegro, Allegro 2, DMX400, Prodigy Plus, Prodigy Max (203 dpi)
20665 ..........
Prodigy
48368 ..........
Prodigy Max (300 dpi)
43095 ..........
DMX600
51126 ..........
DMX800, new style TDK for printers w/CID # of E53-XX-XXXXXXXX
or greater, W-8306
53939 ..........
I-4206 (203 dpi), I-4212, I-4208, I-4212
66748 ..........
I-4308 (300 dpi)
67552 ..........
W-6208 (203 dpi) prior to Dec, 1999
82859 ..........
W-6208 (203 dpi), DPO 20-2164-01, 1999 - to current
67551 ..........
W-6308 (300 dpi)
76736 ..........
M-4206 (203 dpi)
|
Replacement
Printheads for Printers
Ticket
Printers
Control
Logic
20453 .......... 250/1200
Epson
29535 .......... TM-290/TM-U295
IDS
20453 .......... 150/150A/152
Rice
Lake Weighing Systems
35347 .......... SP2200
33969 .......... SP2000A, serial number >6000
20301 .......... SP2000, serial number <6000
Tape
Printers
Control Logic
20454 .......... 260
Epson
36028 .......... TM-U200
32789 .......... TM-300D
68726.......... 590 print mechanism
IDS
20454 .......... 160
Star
72513 .......... SP298
|
|
|
Rice
Lake Ontrak Truck Scale Data Management
Supports
Windows 2000, XP & Vista Systems
SQL Server 2005 Database
Comprehensive Report Filters
User & Administrator Filters
Back up and Restore via SQL Server Management Studio
Unlimited Charge / Discount per Product
Ship or Receive Mode for Each Transaction
Exclusive Database for: Customer, Hauler, Truck, Product, Job,
Price/Discount, Tax, Transaction
|
For more information or
a quote, call (919) 776-7737 or click above to request a written quote
|
