Truck Scales Portable, Side Railed and Flattop at Central Carolina Scale

PORTABLE AXLE SCALES
Axle scales are an economical, adaptable, and portable solution for vehicle and truck weighing. As with any other truck scales, durable construction sets these products apart from the competition.

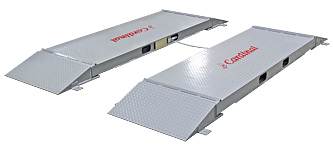

	Cardinal 760 Series Cardinal's completely portable, two-module axle load scale gives you the performance you need, where you need it and when you need it. A real lightweight (only 400 lbs per aluminum platform) that handles the heavyweights (60,000 lbs capacity). Each scale comes complete with either steel or aluminum ramps, NEMA 4 junction box, environmentally-protected stainless steel load cells, and four access ramps.
	Rice Lake Roughdeck AX Standard Features • System includes two scales and four on/off ramps • Axle capacity - tandem platforms - 60,000 lb (two scales 30,000 lb each) Scale • 32 in W x 84 in L x 6 in H • 30,000 lb • Contains four environmentally sealed, IP67 20,000 lb load cells • Treaded top plate with side access junction box • JB4SS TuffSeal® Signal Trim junction box • Top access foot adjustment holes • Carbon steel captured ball feet • 20 ft Survivor EL147HE cable Ramps • 32 in W x 60 in L x 6 in H • Treaded top plate
	Rice Lake AX3040 Standard Features • Sizes: 7 ft, 12 ft and 14 ft lengths • Construction: steel or aluminum • Capacity: 60,000 lb or 80,000 lb • JB4SS Tuff Seal Signal Trim Junction Box • Treaded top plate with four lifting eyes • 10 ft EL146HE Interconnect cable with MS-type connectors to go between weigh pads • 50 ft EL147HE cable to connect weigh pad to indicator Ramps • 32 in W x 25.25 in L • Steel or Aluminum
	Cardinal CWL-40 Cardinal's model CWL-40 portable axle weighers are rugged, but light enough for easy transport, weighing in at only 60 pounds per platform. They feature rechargeable battery power and can factor axle weight and gross weight. With Cardinal's model P150 battery-operated portable tape printer, you may print axle weight, gross weight, time, and date. The interlocking rubber ramps snap perfectly into place with the CWL-40's unique design
	CAS RW-X The RW-X Series Portable Axle Weigher is an economical alternative to full size truck scales. Use on paved or gravel type surfaces. Ideal for weighing tractor trailers, dump trucks, tri/quad axle trucks, concentrated loads, and more.
