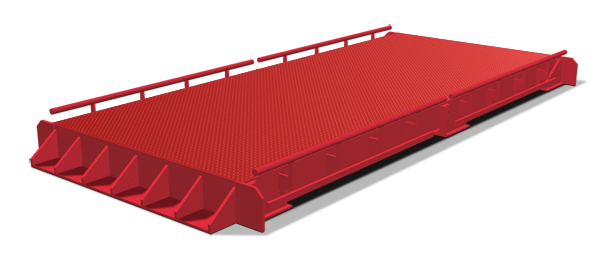

Rice Lake Weighing SURVIVOR® ATV All-Terrain Portable Vehicle Scale

Fully electronic, the portable SURVIVOR® ATV vehicle scale is designed for heavy-duty weighing in virtually any location a permanent installation isn’t practical. Our patented G-Force™ mounting system’s self-checking design controls loading forces, allowing faster processing and extending component life.

The ATV is a more compact steel deck design engineered for portability and movement from job to job. Our self-setting hinge-like connectors make for easy break down and reassembly, and an overall low profile keeps approaches low and gradual. But the ATV wouldn't be a SURVIVOR if it didn't have our trademark heavy duty construction. It's tightly spaced wide flange i-beams and rigid construction are classic Rice Lake.

Rice Lake ATV Truck Scale Brochure (pdf file)

Versatile and cost-effective, the RLWS ATV’s self-contained live modules and floating center modules make it easy to add or remove sections to fit your application requirements.

The ATV Heavy-Duty Top Access Portable features top access to load cells, self-seating hinge connectors, and dedicated transient protection components in each J-box greatly simplifying installation and routine maintenance.

The ATV also incorporates an exclusive lock-out system that removes all weight from the load cells, suspending the deck free of links to avoid damage to electronics while transporting the scale.

The ATV-SR Super Duty Siderail Portable is ideal for weighing tri- and quad-axle dump trucks in pits and quarries. The siderail design features side access to load cells and electronics.



Standard bulkheads are heavily braced for high-compression backfilling with gravel or aggregate. In semi-permanent applications, choose from optional steel ramps or bulkheads for concrete approaches.

The ATV is rigidly constructed for heavy-duty weighing, yet lightweight and compact for convenient portability. The preassembled modules (available in lengths from 10 – 30 ft.) and unique self-seating hinge connectors provide easy installation, expansion and relocation for your growing business. The ATV boasts more steel, the strongest weighbridge and higher quality construction for long-lasting durability and performance. Standard end-cleanout eases debris removal to help maintain scale accuracy.

SURVIVOR ATV Series truck scales are designed to accommodate up to 250 trucks per day for 25 years without weighbridge fatigue. This is equivalent to more than 2 million weighments.

Each load cell has an individual capacity of 75,000 pounds, compared to only 50,000 pounds on many competitive models. Higher capacity load cells handle heavier loads with far fewer failures. Wire-braided copper transient bypass cables are provided at each load cell mount for individual load cell protection from direct lightning strikes to the scale or weighbridge.

All Rice Lake truck scales are equipped with RLWS patented G-Force self-checking mount system. With the G-force design, there are no bumper bolts to work loose, or check rods to bind the scale. Excess movement and scale wear are eliminated by turning 100% of the gravity force from the loading action against itself, instantly returning the scale to dead center without check rods and bumper bolts.



SURVIVOR® ATV-SR Super-Duty Siderail Portable Vehicle Scale   Standard Features: Width: Three standard widths: 10 ft, 11 ft and 12 ft Length: Lengths from 10 ft through 120 ft (module lengths 10-42 ft.) Capacity: Up to 270,000 lb full scale capacity Approvals: NTEP certified, CC #90-011A1 CLC: 90,000 lb Concentrated Load Capacity DTA: 90,000 lb Dual Tandem Axle (DTA) "r" factor: 2.65 Deflection Factor: Low deflection—less than 1:900 under extreme loading Load Cells/Mounts: 75,000 lb load cells and pre-assembled mounts Junction Box(es): Appropriate for number of load cells used Deck: Steel Protective Coatings: Undercarriage rust-proofed with sprayed asphalt emulsion; epoxy primer; alkyd enamel top coat Warranties: Five year weighbridge warranty         Options:   Lightning protection package Bulkheads for concrete approaches Guide rails Special sizes and loading configuration available Steel ramps   Accessories: Digital indicators Ticket and document printers 4" or 6" remote digit displays OnTrak data management software Unattended truck scale system (ATS-1 and ATS-2) Traffic signals

	SURVIVOR® ATV Heavy-Duty Top Access Portable Vehicle Scale Standard Features: Width: Three standard widths: 10 ft, 11 ft and 12 ft Length: Lengths from 10 ft (module lengths 10-30 ft) Capacity: Up to 270,000 lb full scale capacity Approvals: NTEP certified, CC #02-003 CLC: 90,000 lb Concentrated Load Capacity DTA: 90,000 lb Dual Tandem Axle (DTA) "r" factor: 2.65 Deflection Factor: Low deflection—less than 1:800 under extreme loading Load Cells/Mounts: 75,000 lb load cells and pre-assembled mounts Junction Box(es): Appropriate for number of load cells Deck: Steel Protective Coatings: Undercarriage rust-proofed with sprayed asphalt emulsion; epoxy primer; alkyd enamel top coat Warranties: Five year weighbridge warranty         Options:   Lightning protection package Bulkheads for concrete approaches Guide rails Special sizes and loading configuration available Steel ramps   Accessories: Digital indicators Ticket and document printers 4" or 6" remote digit displays OnTrak data management software Unattended truck scale system (ATS-1 and ATS-2) Traffic signals

64510	Truck Scale, 20x10 ATV Steel Deck SURVIVOR ATV Model EZ2010-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
64511	Truck Scale 24x10 ATV Steel Deck SURVIVOR ATV Model EZ2410-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
64512	Truck Scale 40x10 ATV Steel Deck SURVIVOR ATV Model EZ4010-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
64513	Truck Scale 47x10 ATV Steel Deck SURVIVOR ATV Model EZ4710-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 3-Section
64514	Truck Scale 60x10 ATV Steel Deck SURVIVOR ATV Model EZ6010-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
64515	Truck Scale,70x10 ATV Steel Deck SURVIVOR ATV Model EZ7010-ST-100-ATV 90,000lb CLC, 200,000lb Cap, 4-Section
64517	Truck Scale 24x11 ATV Steel Deck SURVIVOR ATV Model EZ2411-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
64518	Truck Scale 40x11 ATV Steel Deck SURVIVOR ATV Model EZ4011-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
64519	Truck Scale 47x11 ATV Steel Deck SURVIVOR ATV Model EZ4711-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
64520	Truck Scale 60x11 ATV Steel Deck SURVIVOR ATV Model EZ6011-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
64521	Truck Scale 70x11 ATV Steel Deck SURVIVOR ATV Model EZ7011-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
66986	Truck Scale 10x10 ATV Steel Deck SURVIVOR ATV Model EZ1010-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
66987	Truck Scale 10x11 ATV Steel Deck SURVIVOR ATV Model EZ1011-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
66988	Truck Scale 10x12 ATV Steel Deck SURVIVOR ATV Model EZ1012-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
66989	Truck Scale 20x12 ATV Steel Deck SURVIVOR ATV Model EZ2012-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
66990	Truck Scale 24x12 ATV Steel Deck SURVIVOR ATV Model EZ2412-ST-60-ATV 90,000lb CLC, 120,000lb Capacity, 2-Section
66991	Truck Scale 40x12 ATV Steel Deck SURVIVOR ATV Model EZ4012-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 3-Section
66992	Truck Scale 47x12 ATV Steel Deck SURVIVOR ATV Model EZ4712-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 3-Section
66993	Truck Scale 60x12 ATV Steel Deck SURVIVOR ATV Model EZ6012-ST-100-ATV 90,000lb CLC, 200,000lb Capacity, 4-Section
70940	Truck Scale, 30x11 ATV Steel Deck SURVIVOR ATV Model EZ3011-ST-60-ATV 90,000 CLC 120,000 Cap, 2 Section
71879	Truck Scale 80x11 ATV Steel Deck SURVIVOR ATV MODEL EZ8011-ST-100-ATV 90,000LB CLC, 200,000LB CAPACITY, 4 SECTION
72970	Truck Scale,30x10 ATV Steel Deck SURVIVOR ATV Model EZ3010-ST-60-ATV 90,000lb CLC, 120,000 Cap, 2-Section
72971	Truck Scale,80x10 ATV Steel Deck SURVIVOR ATV Model EZ8010-ST-100-ATV 90,000lb CLC, 200,000 Cap, 4-Section
72973	Truck Scale,80x12 ATV Steel Deck SURVIVOR ATV Model EZ8012-ST-100-ATV 90,000lb CLC, 200,000lb Cap, 4-Section
