Thurman Diamondback PV

With the same high quality trusted features and capacities of the Diamondback Steel Deck, the Diamondback Portable Vehicle (PV) provides true portability and ease of setup. Each scale ships pre-wired and ready-to-weigh, allowing setup in as little as 3 hours on any firm level surface.

The integrated bulk head/sub-frame design and stand alone load cell mounts eliminate the need for timely setup. Bolt on steel ramps are available in a short 20' length, made possible by a low profile 18" platform. Frame assembly and ramps can be sold separately to accommodate relocating existing Diamondback Steel Deck scales of any length.

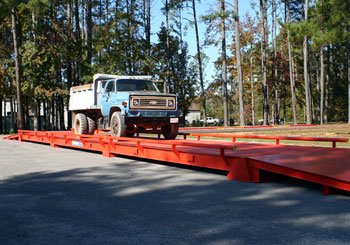

thurman diamondback pv
Brochure (pdf file)

Specifications

Platform sizes . . . .. 10’ x 23’ to 10’ x 80’ (custom sizes available)
Capacities . . . . . . . . . .. . . 60 tons to 135 tons
Concentrated load capacity (CLC) . . . . . 90,000 lbs.
Number of sections . . . . . .. . . . . . . . . . . . . 2 to 5
Load cell capacity . . . . . . . . . . . . . . . . . 75,000 lbs.
Load cell type . . Double-ended shear beam with IP67 hardened alloy steel
Load cell resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700 ohm
Load cell output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.0 mV/V
Load cell cable protection . . . . . . . . . . . . . . . . . . . . . . . . . . Armour Guard
Deck construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Welded steel deck
Deck height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 inches
Type of checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CheckLinkTM
Product assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Modular

Item Number Deck Size Nominal Cap. Modules/Section Shipping Wt.
92387 23’ x 10’ 120,000 1 module, 2 sections 10,100 lbs.
92388 40' x 10' 180,000 2 modules, 3 sections 16,200 lbs.
92389 60' x 10' 240,000 3 modules, 4 sections 23,300 lbs.
92390 70' x 10' 240,000 3 modules, 4 sections 26,300 lbs.
